A parking lot redesign starts with real numbers, not guesswork. Before a designer moves a curb line or adds a new drive aisle, someone has to measure what already sits on the ground. That is the job of a topographic survey. For property owners, engineers, and contractors, this type of survey gives the design team an accurate picture of existing pavement, grades, and fixed site features before any new layout takes shape.
Mapping the Existing Curb Lines Before the Parking Layout Changes

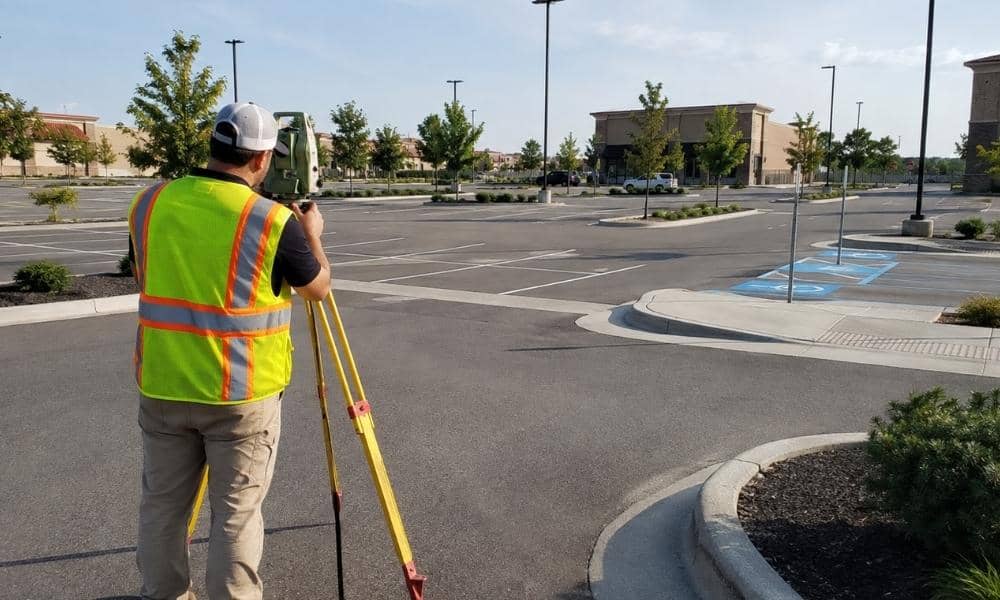

A licensed surveyor locates curb faces, pavement edges, islands, and sidewalks as they exist today. This creates a base map that shows the true shape of the lot, not the shape shown on old plans that may no longer match field conditions.
Old drawings often miss changes made over the years. A curb might have been patched. An island might have been widened or removed. A topographic survey field-checks all of it and plots each edge at its real location.
This base map becomes the starting point for the new layout. A designer working from accurate curb lines can plan striping, drive aisles, and stall counts with fewer surprises during construction.
What this step gives you:
- A verified outline of existing curbs, islands, and pavement edges
- A field-checked base map instead of outdated record drawings
- A starting point that matches what is actually built on site
Recording Pavement Elevations at Entrances and Connection Points
A parking lot does not exist on its own. It ties into driveways, sidewalks, public streets, and building entrances. Each of those connection points has an elevation that the new design has to match or work around.
A topographic survey records spot elevations at these tie-in points. This includes driveway aprons, sidewalk ramps, doorways, and any spot where the paved surface changes direction or material.
Designers use these numbers to set proposed grades for the new layout. Without them, a redesign risks creating a step, a low spot that holds water, or a slope that does not meet an entrance the way it should.
Typical elevation points recorded:
- Driveway entrances from public streets
- Sidewalk and curb ramp connections
- Building entrance thresholds
- Points where the lot meets adjoining paved areas
Capturing Light Poles, Signs, Islands, and Other Fixed Features
A parking lot has more than pavement. Light poles, signposts, landscaped islands, low walls, and bollards all sit within the space too. None of these can simply be worked around during design without knowing exactly where they are.
A topographic survey locates these fixed items when they fall within the agreed scope of work. Each pole, sign, and island gets a coordinate and, where relevant, an elevation.
This matters most when a redesign shifts drive aisles or adds new stalls. A pole that was once clear of traffic could end up blocking a new aisle if its location is not known ahead of time. Locating these features early lets the design team plan around them, relocate them, or remove them as part of the project scope.
Fixed features commonly located:
- Light poles and electrical pedestals
- Signposts, including accessible parking signage
- Landscaped islands and curbed planting areas
- Low walls, bollards, and wheel stops within the survey scope
Using Survey Data When Accessible Parking Areas Are Reconfigured
When accessible stalls, access aisles, or connecting routes are being reconsidered, the design team needs real elevation data to work with. A topographic survey supplies that data.
Surveyed elevations show how the ground and pavement currently slope across an accessible stall or route. A designer can use these numbers to check current conditions against the layout they are proposing.
A topographic survey measures and locates existing conditions. It does not certify that a space meets ADA requirements on its own. That determination is made by the design or compliance professional reviewing the surveyed data against the applicable standards. The survey provides the field-verified numbers that make that review possible.
Identifying Where New Pavement Must Tie Into Existing Improvements
Every redesign has edges. New pavement has to meet old pavement somewhere, and that transition has to work without a lip, a gap, or a mismatched slope.
A topographic survey identifies these tie-in points across the site. This includes where new paving meets an existing curb, sidewalk, entrance drive, or adjoining lot. The surveyor records the elevation and location at each of these points so the designer can plan a smooth transition.
Getting this part right during design keeps the contractor from discovering elevation conflicts once paving equipment is already on site. Catching a mismatch on paper costs far less than catching it in the field.
Where tie-ins commonly need attention:
- New pavement meeting existing curb and gutter
- New striping areas connecting to unchanged sections of the lot
- Drive aisles meeting adjoining property or shared access points
- New paving meeting sidewalks or building entrances
Frequently Asked Questions
Does a topographic survey show existing parking spaces and pavement markings?
Visible pavement markings can be located when they are included in the requested survey scope. The owner or designer should specify which parking features are needed before the fieldwork begins.
Can a topographic survey identify the slope of an existing parking area?
Yes. Surveyed elevations give the measurements needed to check changes in ground or pavement elevation across the lot.
Should light poles and landscaped islands be included in a parking lot topographic survey?
They often should be, since they can affect a proposed layout. The required features should be identified when the survey scope is set.
Can a topographic survey confirm that an existing accessible parking space meets ADA requirements?
Not by itself. A survey provides measured elevations and locations. A design or compliance professional reviews those measurements against the applicable requirements.
Should the survey extend beyond the pavement being redesigned?
Sometimes. Nearby entrances, sidewalks, curbs, buildings, or other connection points may need to be included when they affect the proposed redesign.
